RVVP型铜芯屏蔽软电缆
- 分类：天诚弱电电缆
- 发布时间：2025-12-01
- 访问量：0
本产品适用于交流额定电压U0/U为300/300V及以下电器、仪表、电子设备及自动化装置，作有屏蔽要求的布线连接。 执行标准：JB/T 8734.5-2016、Q/321001LLD 03-2017

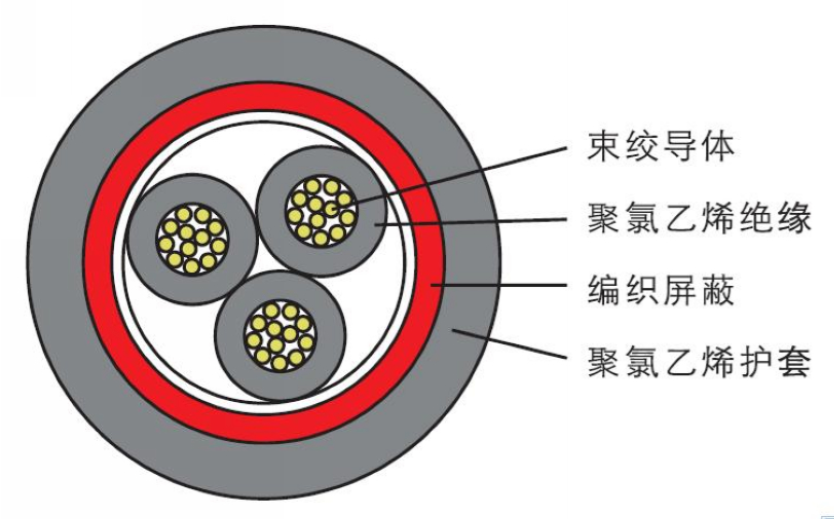

1、电缆长期使用温度为-15℃～70℃。 2、电缆敷设温度不低于0℃，特殊使用温度可定做。 3、导体：99.996%无氧软铜丝。 4、绝缘：70℃国标聚氯乙烯。 5、屏蔽层：99.996%无氧软铜丝编织，编织密度60%～80%。 6、护套：70℃国标聚氯乙烯。
产品参数
RVVP型300/300V铜芯聚氯乙烯绝缘屏蔽聚氯乙烯护套软电缆
执行标准：JB/T 8734.5-2016
芯数×标称面 mm² | 绝缘厚度mm | 护套 厚度mm | 平均外径或外形尺寸 mm | 20℃时导体电阻 大值 Ω/km | 70℃时绝缘电阻 小值 MΩ·km | ||
下限 | 上限 | 铜芯 | 镀锡铜芯 | ||||
1×0.08 | 0.4 | 0.4 | 2.4 | 2.9 | 247 | 254 | 0.019 |
1×0.12 | 0.4 | 0.4 | 2.4 | 3.0 | 158 | 163 | 0.016 |
1×0.2 | 0.4 | 0.4 | 2.6 | 3.2 | 92.3 | 95.0 | 0.013 |
1×0.3 | 0.5 | 0.4 | 2.9 | 3.5 | 69.2 | 71.2 | 0.014 |
1×0.4 | 0.5 | 0.4 | 3.0 | 3.7 | 48.2 | 49.6 | 0.012 |
1×0.5 | 0.5 | 0.4 | 3.1 | 3.8 | 39.0 | 40.1 | 0.012 |
1×0.75 | 0.5 | 0.4 | 3.4 | 4.1 | 26.0 | 26.7 | 0.010 |
1×1.0 | 0.6 | 0.6 | 4.1 | 4.9 | 19.5 | 20.0 | 0.011 |
1×1.5 | 0.6 | 0.6 | 4.3 | 5.2 | 13.3 | 13.7 | 0.0094 |
1×2.5 | 0.7 | 0.6 | 4.9 | 6.0 | 7.98 | 8.21 | 0.0086 |
2×0.08 | 0.4 | 0.4 | 3.2 | 4.2 | 247 | 254 | 0.019 |
2×0.12 | 0.4 | 0.6 | 3.7 | 4.9 | 158 | 163 | 0.016 |
2×0.2 | 0.4 | 0.6 | 4.1 | 5.3 | 92.3 | 95.0 | 0.013 |
2×0.3 | 0.5 | 0.6 | 4.8 | 6.2 | 69.2 | 71.2 | 0.014 |
2×0.4 | 0.5 | 0.6 | 5.1 | 6.6 | 48.2 | 49.6 | 0.012 |
2×0.5 | 0.5 | 0.6 | 5.3 | 6.8 | 39.0 | 40.1 | 0.012 |
2×0.75 | 0.5 | 0.6 | 5.8 | 7.4 | 26.0 | 26.7 | 0.010 |
2×1.0 | 0.6 | 0.6 | 6.4 | 8.2 | 19.5 | 20.2 | 0.011 |
2×1.5 | 0.6 | 0.8 | 7.3 | 9.2 | 13.3 | 13.7 | 0.0094 |
2×2.5 | 0.7 | 1.0 | 8.8 | 11.7 | 7.98 | 8.21 | 0.0086 |
2×4.0 | 0.8 | 1.2 | 10.6 | 13.9 | 4.95 | 5.09 | 0.0079 |
3×0.12 | 0.4 | 0.6 | 3.9 | 5.1 | 158 | 163 | 0.016 |
3×0.2 | 0.4 | 0.6 | 4.5 | 5.8 | 92.3 | 95.0 | 0.013 |
3×0.3 | 0.5 | 0.6 | 5.1 | 6.5 | 69.2 | 71.2 | 0.014 |
3×0.4 | 0.5 | 0.6 | 5.4 | 6.9 | 48.2 | 49.6 | 0.012 |
3×0.5 | 0.5 | 0.6 | 5.6 | 7.1 | 39.0 | 40.1 | 0.012 |
3×0.75 | 0.5 | 0.6 | 6.1 | 7.8 | 26.0 | 26.7 | 0.010 |
3×1.0 | 0.6 | 0.8 | 7.2 | 9.1 | 19.5 | 20.0 | 0.011 |
3×1.5 | 0.6 | 0.8 | 8.0 | 10.0 | 13.3 | 13.7 | 0.0094 |
3×2.5 | 0.7 | 1.0 | 9.5 | 12.6 | 7.98 | 8.21 | 0.0086 |
4×0.12 | 0.4 | 0.6 | 4.5 | 5.8 | 158 | 163 | 0.016 |
4×0.2 | 0.4 | 0.6 | 4.9 | 6.2 | 92.3 | 95.0 | 0.013 |
4×0.3 | 0.5 | 0.6 | 5.5 | 7.0 | 69.2 | 71.2 | 0.014 |
4×0.4 | 0.5 | 0.6 | 5.9 | 7.5 | 48.2 | 49.6 | 0.012 |
4×0.5 | 0.5 | 0.8 | 6.5 | 8.9 | 39.0 | 40.1 | 0.012 |
4×0.75 | 0.6 | 0.8 | 6.8 | 9.3 | 26.0 | 26.7 | 0.010 |
4×1.0 | 0.6 | 0.9 | 7.7 | 9.7 | 19.5 | 20.0 | 0.011 |
4×1.5 | 0.6 | 0.9 | 8.4 | 11.5 | 13.3 | 13.7 | 0.0094 |
4×2.5 | 0.7 | 1.0 | 10.1 | 13.6 | 7.98 | 8.21 | 0.0086 |
