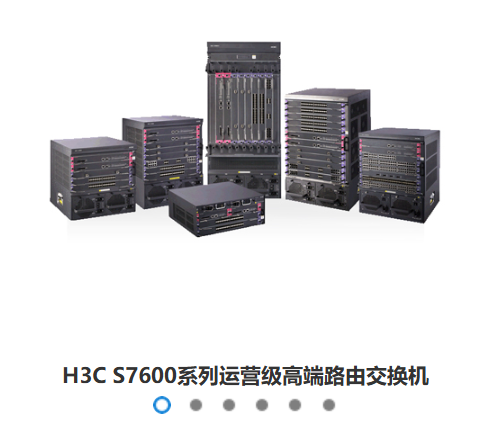

The H3C S7600 series carrier-grade high-end routing switches are a new generation of metropolitan area network (MAN) equipment launched by H3C Technologies Co., Ltd. (hereinafter referred to as H3C) for the metropolitan area Ethernet market. Compared with traditional enterprise-grade Ethernet switches, the S7600 series routing switches have made a qualitative leap in terms of table capacity, QoS, reliability, manageability, multi-service support capabilities, and network security. They are truly carrier-grade IP switching products, capable of providing high-capacity, high-reliability, and stringent QoS service carrying guarantees for carrier MANs, data centers, and other applications.

The H3C S7600 series of routing switches includes seven main models: S7602-S, S7603, S7603-S, S7606, S7606-S, S7606-V, and S7610. These models can adapt to port densities and performance requirements of different network sizes, providing strong equipment support for operators building multi-service integrated metropolitan area networks. The S7600 series routing switches, together with H3C's series of routers, Ethernet switches, and iMC network management system, provide operators with a complete range of solutions for metropolitan area Ethernet networking.

Features

1,based onIRF2Virtualization architecture of (second-generation intelligent elastic architecture) technology

H3C S7600Series switches supportIRF2The (second-generation intelligent elastic architecture) technology has strong advantages in scalability, reliability, overall architecture, and availability, mainly reflected in four aspects:

* Scalability:IRFThe technology allows switches to expand to multiple devices using interconnect cables; it features plug-and-play functionality and single-device compatibility.IPIt offers the advantages of management and synchronized upgrades, while significantly reducing the cost of system expansion.

* Reliability: Through routing hot backup technology, throughout the entireIRFThe group achieves redundant backup and uninterrupted Layer 3 forwarding of all information in the control plane and data plane, greatly enhancing [its capabilities].IRFThe system ensures high reliability and performance, while eliminating single points of failure and preventing business interruptions.

* Distributed nature: Through distributed link aggregation technology, load sharing and mutual backup of multiple uplinks are achieved, thereby improving the redundancy of the entire network architecture and the utilization rate of link resources.

* Availability: The intelligent elastic architecture is achieved through standard 10 Gigabit Ethernet interfaces, which can allocate service bandwidth and system connection bandwidth according to demand and rationally allocate local traffic and uplink traffic; it can realize intelligent elastic architecture not only within racks, across racks, but also across regions.\

2High availabilityM-LAGArchitecture

S7500ESeries switches supportM-LAG（Multichassis Link Aggregation GroupCross-device link aggregation technology (original)DRNIThis technology enables cross-device link aggregation by virtualizing two physical devices into one device at the forwarding layer, maintaining independence at the control layer, achieving dual-active access for devices, providing device-level redundancy protection and traffic load balancing, and improving system reliability.

3、IRF3(Third-generation intelligent elastic architecture - vertical virtualization)

H3C S7600This product series can support heterogeneous virtualization in the vertical dimension, connecting core and access devices through...IRF3The technology forms a vertical logical virtual device that supportsAC、APUnified management and configuration are equivalent to adding a box-type device as a remote interface board to the main device system to achieve expansion.I/OThe purpose is to provide port capabilities and to enable centralized control and management.IRF3Technology can simplify management and significantly reduce network management nodes; simplify cabling, reducing Layer 2 to Layer 1 and saving horizontal connection cables; and ultimately achieve data forwarding plane virtualization, which facilitates simplified business deployment and automatic orchestration.

Complete two-layer characteristics

Large capacityMACTable entries;4K VLANSupport, flexibleQinQCapabilities; full spanning tree feature support; port aggregation/Port mirroring/Broadcast storm suppression. Comprehensive Layer 2 features ensure that the device meets user functional requirements at the aggregation layer.

Powerful three-layer functionality

Large-capacity Layer 3 entries; complete routing protocol support; large-capacity multicast support. This is achieved through the provision of ultra-large-capacity forwarding table entries., S7600It can support core and aggregation layer applications in large-scale metropolitan area networks, and can also support Layer 2, Layer 3, and...MPLSThe application provides ample support for table entries.

AbundantQoS、ACLcharacteristic

S7600supplyVLAN ACL、Egress ACLEnhancedACLThe functionality provides abundant resources for complex secure access management and control.

existQoSaspect,S7600Provide comprehensiveDiff-Serv/QoSSupported. Supports priority remarking or rate limiting based on packet flow classification results; supports bidirectional dual-speed three-color and single-speed two-color bandwidth monitoring functions; supports...WREDCongestion control methods that include tail dropping, and supportSP、WRR、WFQQueue scheduling algorithms, support802.1P、DSCP、EXPPriority mapping and remarking, supporting port-based/It features functions such as port queue output stream shaping and provides priority queue scheduling capabilities based on three levels: user, service, and port. This effectively guarantees the quality of service for the integrated carrying of various services, including voice, data, video, and enterprise private networks, in metropolitan area networks.

Through powerfulQoSability,S7600In the operator's metropolitan area network, differentiated quality of service guarantees are provided for different service types, and more granular service-based bandwidth control is provided for a large number of individual and enterprise users.

4Cloud data center technology

As a core device for enterprise-level networksH3C S7600This product series helps users confidently navigate the range of technologies and solutions required for cloud data centerization:

TRILLAs the scale of servers and switches increases, data center networks are increasingly inclined towards a flattened network architecture to facilitate maintenance and management, which requires the construction of a large Layer 2 network.H3C S7600The series of products supports...TRILLThe technology and vertical virtualization technology are used to build large-scale Layer 2 networks in data centers. Large-scale Layer 2 technology in data centers.TRILL（TRansparent Interconnection of Lots of LinksThe multi-link transparent interconnection protocol integrates Layer 3 routing technology.IS-IS（Intermediate System-to-Intermediate SystemThe design concept of "intermediate system to intermediate system" was introduced into Layer 2 networks, and necessary modifications were made to them. This organically integrates the simplicity and flexibility of Layer 2 with the stability, scalability, and high performance of Layer 3.

MDC：H3C S7600The product can be passedMDCTechnology achieves true1：NVirtualization, that is, virtualizing a switch intoNThese are independent virtual switches, unlike traditional switch virtualization technology.MDCEach virtual switch is physically and securely isolated from the others, possessing independent hardware resources and management permissions. This meets the needs of multi-service customers sharing the core switch, thus fully utilizing the core switch's capabilities to achieve isolation and reuse while reducing user investment costs—a win-win situation.

EVB：H3C S7600Product SupportEVB (Edge Virtual Bridging),passVEPA (Virtual Ethernet Port Aggregator)The technology uploads the network traffic generated by virtual machines to the physical switch connected to the server for processing, which not only realizes traffic forwarding between virtual machines, but also solves problems such as virtual machine traffic monitoring and access control policy deployment.

FCOE： H3C S7600Series of products supportFCOEtechnology;FCOEThe technology is mainly used to solve cloud computing data centersANDThe problem of heterogeneous network and storage network can be addressed through...FCoEandCEEThe deployment of this technology can achieve the integration of the front-end and back-end network architectures of data centers, solving the technical problem of the separation of data, computing, and storage networks, thereby greatly reducing the procurement and expansion costs of data centers.

HOME：H3C S7600Series of products supportHOME（Ethernet Virtual InterconnectionEthernet virtualization interconnection technologyHOMEIt is an advanced"MAC in IP"technology,HOMEThe solution deployment is very simple, based on existing...IPNetworks provide flexible Layer 2 interconnection capabilities for distributed physical sites.

5High reliability

In terms of hardware design,S7600The power system adopts a passive backplane design.1+1Redundant backup design, supports dual power input, supports online fault detection and alarm indication, and all boards and fan frames support hot-swapping.

Regarding the two-layer characteristics,S7600supportSTP/RSTP/MSTPprotocol,VRRP v2/v3Agreements, etc., and provide unique features.public relationsThe fast ring network protection protocol has a ring network convergence time of approximately [time missing].50msThis effectively ensures rapid fault detection and protection in ring network applications. Furthermore,S7600SupportSmartLinkDual uplink primary and backup link protection mechanism, cross-board aggregation function, EthernetOAMSimpler and more reliable fault detection and protection methods.

At the Layer 3 routing protocol levelS7600supportGraceful Restart for OSPF/BGP/ISISIt can ensure uninterrupted forwarding of the interface board during primary/standby switchover and guarantee the correctness of network protocol status and service carrying when network failure occurs.

Through highly reliable hardware and software designS7600It can provide highly reliable transport for various services in the operator's metropolitan area network, ensuring that service failure recovery time meets the requirements.50msTelecom-grade requirements.

6High security

S7600Provide packet security filtering/ACLThis mechanism prevents unauthorized intrusion and malicious message attacks. It also addresses critical routing protocols (…).OSPF，IS-IS，RIP-2、BGP(etc.) also provides multiple verification methods (plaintext verification, etc.)MD5、HMAC-MD5), and provide protectionOF THEAttack, throughDHCP Relay securityandDHCP Snooping securitySafety features, etc.IP、MAC、PortThe binding can effectively prevent address spoofing and provide a complete security solution for metropolitan area network construction.

A robust security protection mechanism can comprehensively safeguard network security from three aspects: control, management, and forwarding.

7Active and passive integrated

S7600seriesOLTThe device supports a wide range of features.2/3Layer protocol. Supported.EPONVarious types of Ethernet interfaces, including 100Mbps, 1Gbps, and 10Gbps, are provided.4 PONmouth,8 poundsmouth,16PONMouth with8GEUplink board interface density; offers various interface board combinations to fully meet customer needs. Maximum support for the entire system.160indivualEPONPort; eachEPONThe line can support1.25GbpsSymmetrical bandwidth, maximum splitting ratio1:64Distributed architecture and hardwareAISCProcessing GuaranteeIPv4/IPv6The service forwards at line speed, eliminating the bottleneck of centralized processing and meeting the ever-evolving needs of network services.
