高清视频会议系统

HUAWEI IdeaHub B2

HUAWEI IdeaHub B2

Details

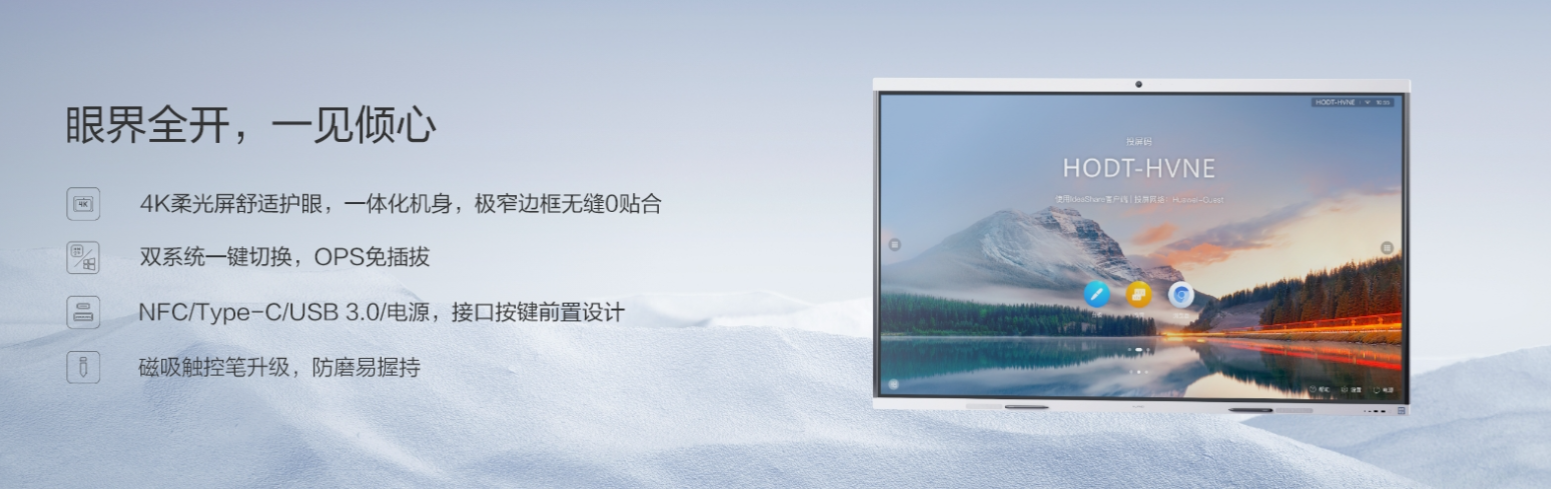

Lightweight office solution

IdeaHub B2, based on a brand-new hardware architecture platform, provides a 1080P high-definition cloud conferencing experience on Android devices. Equipped with a 4K soft light screen, it offers a comprehensive upgrade for screen projection and writing, and is widely used in collaborative creation scenarios such as business reports, project discussions, and morning meetings, meeting the needs of lightweight digital office work.

f96a15e1-b085-4910-a2df-80f7e36e2e5b


Native cloud conferencing

1080P HD video conferencing, no OPS installation required, built-in Huawei Cloud Meeting, one-click QR code entry, making meetings as simple as opening a window. Professional-grade 4K video camera with a 1.5μm industrial-grade light sensor, TV distortion <2%, low noise for a more natural sound, and a circulating heat dissipation design ensures clear audio even during long meetings; 6-array microphones use beamforming to easily pick up human voices within 10 meters, combined with a 550cm³ ultra-large sound cavity stereo speaker, ensuring clear hearing and true-to-life communication.


6e623035-d284-4972-b1d7-285e937045ac


1. Intelligent drawing and smooth writing

With a self-developed handwriting tracking algorithm, the writing latency is as low as 25ms; the new generation magnetic stylus offers multiple strokes and handwriting options, allowing you to write and draw to your liking; high-precision intelligent recognition of handwritten text and graphics, turning drafts into final drafts in seconds; scan the QR code on the whiteboard to take away the meeting content with one click, save it on your phone or tablet, and view it anytime, anywhere.



2. Multi-device collaboration, smart office ecosystem

Collaborate with various types of terminals, providing mutual support; pre-installed with mainstream office applications.

IdeaHub Zone Application Large Screen Adaptation


92ebe832-5726-4441-af33-850ad615a1a0

20547e3c-7372-486e-bf2c-61678bbf6ca3


IdeaHub B2-65-inchIdeaHub B2-75 inch
IdeaHub B2-85 inch
modelIHB2-65PUHB2-75PUIHB2-86PU
Product Dimensions1485mm × 92mm × 916mm1706mm × 92mm × 1041mm1953mm × 92mm × 1181mm
Packaging size1650mm × 220mm × 1050mm1900mm × 220mm × 1170mm2090mm × 250mm × 1300mm
Components


Complete machine1 unit1 unit1 unit
stylus222
Matching cablesPower cord ×1Power cord ×1Power cord ×1
Floor standOptional (compatible with 65", 75" and 86")Optional (compatible with 65", 75" and 86")Optional (compatible with 65", 75" and 86")
Wall mount bracketOptional (compatible with 65", 75" and 86")Optional (compatible with 65", 75" and 86")Optional (compatible with 65", 75" and 86")
Smart screen projectorOptionalOptionalOptional
OPS Plug-in ComputerOptionalOptionalOptional
Note: The IdeaHub B2 product bracket interface meets the VESA standard.


Screen


resolutionUltra HD 4K (3840 x 2160)Ultra HD 4K (3840 x 2160)Ultra HD 4K (3840 x 2160)
Backlight typeD-LEDD-LEDD-LED
bonding processZero bondingZero bondingZero bonding
Viewing angle178°178°178°
Dark color10bit (8bit +FRC)10bit (8bit +FRC)10bit (8bit +FRC)
Color gamut85% NTSC (typical value)85% NTSC (typical value)85% NTSC (typical value)
screen refresh rate60 Hz60 Hz60 Hz
Number of touch points8 PM20point20point
Camera


Lens zoom2× Digital ZoomDigital zoomDigital zoom
Maximum viewing angleHorizontal: 80° / Vertical: 50°level:80° / Vertical: 50°level:80° / Vertical: 50°
Video output pixels4K4K4K
TV distortion<2%2%2%
apertureF1.8F1.8F1.8
speaker


Frequency domain100Hz-20kHz100Hz-20kHz100Hz-20kHz
loudspeaker unit2 full-range units + 2 high-frequency units2 full-range units + 2 high-frequency units2 full-range units + 2 high-frequency units
stereosupportsupportsupport
Maximum power30W30W30W
microphone


pickup angle180°180°180°
Number of microphones666
Frequency domain100Hz-20kHz100Hz-20kHz100Hz-20kHz
pickup distance10m10m10m
Wireless connection


Dual Wi-Fi module
frequency2.4 GHz/5 GHz2.4 GHz/5 GHz2.4 GHz/5 GHz
system


CPU4Core @1.5G4Core @1.5G4Core @1.5G
RAM4 GB4 GB4 GB
Flash32 GB32 GB32 GB
operating systemAndroid 9.0/Windows 10*Android 9.0/Windows 10*Android 9.0/Windows 10*
* Windows 10 operating system, requires optional OPS plug-in computer.
Terminal interface


Front InterfaceUSB Type-C x 1;USB Type-A 3.0 x 2USB Type-C x 1;USB Type-A 3.0 x 2USB Type-C x 1;USB Type-A 3.0 x 2
Side interfaceUSB Type-A 3.0 x 1;USB Type-B x 1;HDMI IN x 2;HDMI OUT x 1;COM口 x 1;RJ45网口 x 1;80pin OPS接口 x 1;3.5mm Line-in x 1;3.5mm Line-out x 1USB Type-A 3.0 x 1;USB Type-B x 1;HDMI IN x 2;HDMI OUT x 1;COM口 x 1;RJ45网口 x 1;80pin OPS接口 x 1;3.5mm Line-in x 1;3.5mm Line-out x 1USB Type-A 3.0 x 1;USB Type-B x 1;HDMI IN x 2;HDMI OUT x 1;COM口 x 1;RJ45网口 x 1;80pin OPS接口 x 1;3.5mm Line-in x 1;3.5mm Line-out x 1
Meeting


Third-party meetingsupportsupportsupport
Screen mirroring


Screen mirroring methodsIdeaShare screen mirroring code; HDMI and Type-C wired screen mirroring; smart screen mirroring device; NFC one-touch screen mirroring, drop-down menu screen mirroringIdeaShare screen mirroring code; HDMI and Type-C wired screen mirroring; smart screen mirroring device; NFC one-touch screen mirroring, drop-down menu screen mirroringIdeaShare screen mirroring code; HDMI and Type-C wired screen mirroring; smart screen mirroring device; NFC one-touch screen mirroring, drop-down menu screen mirroring
Screen casting effectWireless screen mirroring supports up to 4K 30fps; wired screen mirroring supports up to 4K 60fps.Wireless screen mirroring supports up to 4K 30fps; wired screen mirroring supports up to 4K 60fps.Wireless screen mirroring supports up to 4K 30fps; wired screen mirroring supports up to 4K 60fps.
Screen mirroring client supports the following systemsAndroid / Windows / iOS / macOSAndroid / Windows / iOS / macOSAndroid / Windows / iOS / macOS
Screen Annotationsupportsupportsupport
Reverse controlsupportsupportsupport
write


Writing delay≤25ms≤25ms≤25ms
Writing accuracy±1mm±1mm±1mm
Touch height≤1.5mm≤1.5mm≤1.5mm
Whiteboard preservation methodQR code/email/local/USB driveQR code/email/local/USB driveQR code/email/local/USB drive
Intelligent handwriting recognitionsupportsupportsupport
