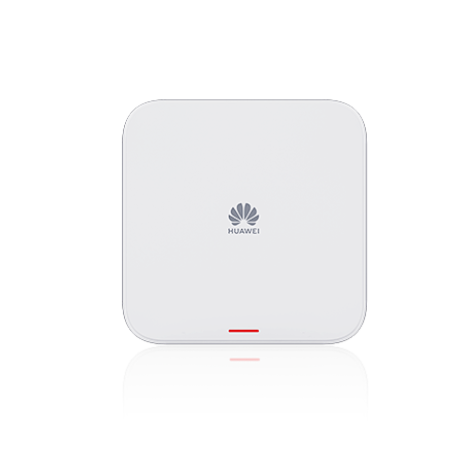

AirEngine 8761-X1 access point
- Classification:Huawei Indoor Access Point (AP)
- Release time:2025-11-17
- Page views:0
The AirEngine 8761-X1 is Huawei's next-generation wireless access point (AP) supporting the 802.11ax standard. It features a built-in smart antenna, 12 spatial streams, and a speed of up to 5.95Gbps. It also supports a 10G Ethernet port, easily solving uplink bandwidth bottlenecks and fully meeting the quality of service requirements of high-bandwidth services such as high-definition video streaming, multimedia, and desktop cloud applications, allowing enterprise users to enjoy high-quality wireless services.
1. Smart Antenna
Built-in exclusive dual-band common-plane smart antenna, automatically suppresses interference, increases coverage radius by 20%, and increases signal strength at the same location by 100%, providing users with stable coverage without dead zones.
2. 10GE uplink
One 10GE Ethernet port + one GE Ethernet port, with 10GE/GE uplink selectable as needed, perfectly balancing current and future bandwidth requirements.
3. Cloud Management
The AP devices and services can be managed and maintained through the Huawei Cloud management platform, saving network operation and maintenance costs.
Technical parameters
| parameter | AirEngine 8761-X1 |
| Dimensions (height × width × depth) | 57 x 220 x 220 mm |
| Power input | DC：43.2V～57.6V PoE Power Supply: Meets the 802.3at Ethernet Power Supply standard |
| Maximum power consumption | 23.5W (excluding USB) Note: Actual maximum power consumption varies depending on the regulations of different countries and regions. |
| Maximum number of users | ≤1024 Note: The actual number of users may vary depending on the usage environment. |
| Operating temperature | -10℃ ～+50℃ |
| Antenna type | Built-in smart antenna |
| MIMO: Spatial Stream | 2.4GHz: 4×4:4，5GHz: 8×8:8 |
| wireless protocol | 802.11a/b/g/n/ac/ac wave2/ax |
| Maximum speed | 5.95Gbps |
