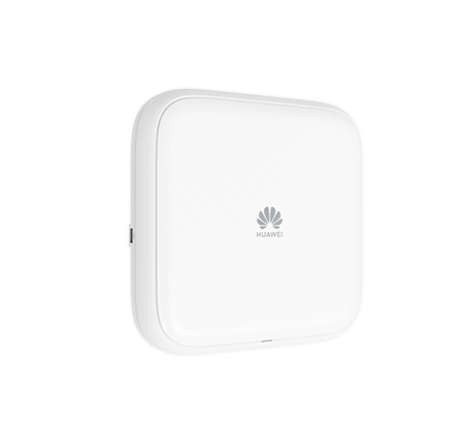

The AirEngine 8776-X6THP is an indoor access point (AP) independently developed by Huawei that supports the Wi-Fi 7 (802.11be) standard. It supports three bands: 2.4 GHz (4x4 MIMO), 5 GHz (4x4 MIMO), and 5 GHz (4x4 MIMO), with 12 spatial streams and a speed of up to 12.9Gbps. Enhanced by the new Wi-Fi 7 technology, it significantly improves the user experience of wireless networks and is suitable for indoor coverage scenarios such as medium to large enterprise offices, education, and healthcare facilities.

1. Dynamic zoom smart antenna

Equipped with a built-in dynamic zoom smart antenna, it supports omnidirectional and high-density coverage modes, dynamically adjusting the coverage mode according to different scenarios; the high-density mode improves overall network performance and ensures a smooth high-density access experience for users.

2. iCSSR

The iCSSR (Multi-AP Cooperative Algorithm) allows different APs to coordinate their transmission time slots and parameters, enabling multiple APs to operate on the same channel, thereby significantly improving spectral efficiency and boosting overall network performance by 30%.

3. Wi-Fi Shield

The innovative Wi-Fi security shield ensures that only the target device can accurately receive data packets, while non-target devices cannot receive them, thus preventing malicious users from eavesdropping.

Technical parameters
