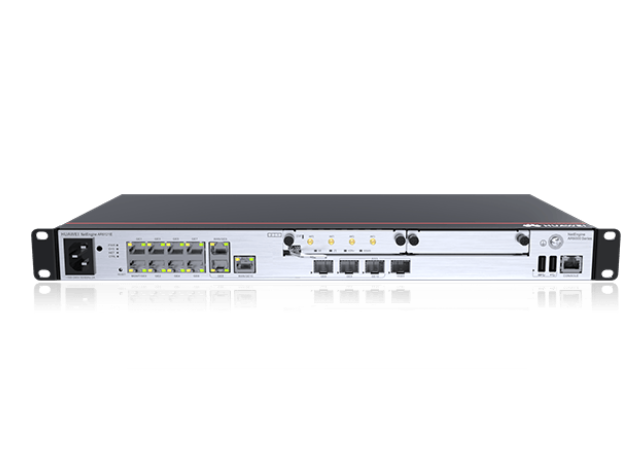

NetEngine AR6100 Series Enterprise Routers
- Classification:Branch interconnection router
- Release time:2025-11-17
- Page views:0
The NetEngine AR6000 series enterprise routers are a box-type product series launched by Huawei for the headquarters or branches of small and medium-sized enterprises. They integrate a wealth of features such as SD-WAN, routing, switching, VPN, MPLS, and security, while supporting a variety of interface types such as Ethernet, LTE/5G, and voice to meet the diversified business and high-performance needs of different enterprise customers.
| Specification Name | NetEngine AR6121E | NetEngine AR6140E-9G-2AC |
| Packet forwarding rate | 9 Mpps-40 Mpps | 9 Mpps-40 Mpps |
| Total switching capacity | 20 Gbps-80 Gbps | 20 Gbps-80 Gbps |
| Forwarding performance (NAT + ACL + QoS, IMIX) | 2 Gbps | 2 Gbps |
| IPsec performance (IMIX) | 2 Gbps | 2 Gbps |
| IPsec performance (1400 bytes) | 4 Gbps | 4 Gbps |
| SD-WAN IPSec Performance* (IMIX) | 1.5 Gbps | 1.5 Gbps |
| SD-WAN IPSec performance* (1400 bytes) | 4.5 Gbps | 4.5 Gbps |
| SD-WAN forwarding performance** (IMIX) | 1.2 Gbps | 1.2 Gbps |
| SD-WAN forwarding performance** (1400 bytes) | 1.85 Gbps | 1.85 Gbps |
| Typical SD-WAN performance*** (IMIX) | 800 Mbps | 800 Mbps |
| Typical SD-WAN performance (1400 bytes) | 1.8 Gbps | 1.8 Gbps |
| WAN side interface | 2*GE Combo, 1*10GE SFP+ (GE optical compatible) | 2*GE electric, 2*GE optical |
| LAN side interface | 1*GE Combo, 8*GE Power (all can be switched to WAN port) | 2*GE optical, 3*GE electrical (all can be switched to WAN port) |
| SiC slot | 2 | 4 |
| WSIC slot (default/maximum ****) | 0/1 | 0/2 |
| Console Interface | 1* RJ45 Console Serial Port | 1* RJ45 Console Serial Port |
| USB interface | 2*USB2.0 | 1*USB2.0 |
| Memory | 4GB | 4 GB |
*: SD-WAN IPSec performance model: IPSec performance data is the sum of bidirectional flows.
**: SD-WAN forwarding performance model: IPSec + QoS, performance data is the sum of bidirectional flows.
***: Typical SD-WAN performance model: IPSec + QoS + SA + AppFlow, where performance data is the sum of bidirectional flows.
****: Note: The maximum number of slots includes the number of slots that can be combined from other slots.
