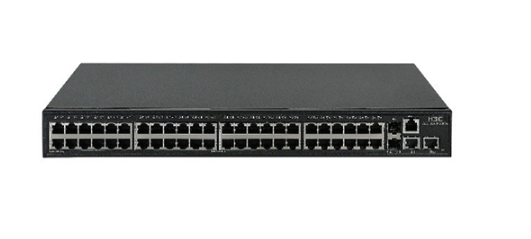

H3C S5130S-EI Next-Generation High-Performance Gigabit Ethernet Switch

The H3C S5130S-EI switch is a gigabit Ethernet switch product independently developed by H3C Technologies Co., Ltd. (hereinafter referred to as H3C). It is an intelligent, manageable switch designed for network environments that require high performance, high port density, and easy installation.

The H3C S5130S-EI series Ethernet switches offer 10/100/1000Base-T auto-sensing Ethernet ports or SFP optical ports, and 10G SFP+ optical ports. In enterprise networks, they can serve as access devices providing gigabit-to-the-desktop applications; in metropolitan area networks or industry users, they can provide gigabit access to end users or aggregate low-end switches downstream, and upstream, they can aggregate to high-capacity L3 switches via gigabit or 10-gigabit fiber optic cables or link aggregation.

The H3C S5130S-EI series Ethernet switches support the innovative IRF (Intelligent Resilient Framework) technology, allowing users to connect up to nine S5130EI switches to form a logically independent entity, thereby building a new type of intelligent network with high reliability, easy scalability, and easy management.

The H3C S5130S-EI series Ethernet switches include the following models:

* S5130S-10P-EI: 8 10/100/1000BASE-T auto-sensing Ethernet ports, 2 1000BASE-X SFP ports;

* S5130S-12TP-EI: 8 10/100/1000BASE-T auto-sensing Ethernet ports, 2 100/1000BASE-X SFP ports (including 2 10/1000/1000BASE-T combo Ethernet ports), and 2 1000BASE-X SFP ports;

* S5130S-20P-EI: 16 10/100/1000BASE-T auto-sensing Ethernet ports, 4 1000BASE-X SFP ports;

* S5130S-28S-EI: 24 10/100/1000BASE-T auto-sensing Ethernet ports, 4 1/2.5/10GE SFP+ ports;

* S5130S-52S-EI: 48 10/100/1000BASE-T auto-sensing Ethernet ports, 4 1/2.5/10GE SFP+ ports;

* S5130S-28P-EI: 24 10/100/1000BASE-T auto-sensing Ethernet ports, 4 1000BASE-X SFP ports;

* S5130S-52P-EI: 48 10/100/1000BASE-T auto-sensing Ethernet ports, 4 1000BASE-X SFP ports;

* S5130S-10P-HPWR-EI: 8 x 10/100/1000BASE-T PoE+ auto-sensing Ethernet ports, 2 x 1000BASE-X SFP ports;

* S5130S-12TP-HPWR-EI: 8 10/100/1000BASE-T PoE+ adaptive Ethernet ports, 2 100/1000BASE-X SFP ports (including 2 10/1000/1000BASE-T combo Ethernet ports), and 2 1000BASE-X SFP ports;

* S5130S-20P-PWR-EI: 16 10/100/1000BASE-T PoE+ auto-sensing Ethernet ports, 4 1000BASE-X SFP ports;

* S5130S-28P-PWR-EI: 24 10/100/1000BASE-T PoE+ auto-sensing Ethernet ports, 4 1000BASE-X SFP ports;

* S5130S-28P-HPWR-EI: 24 10/100/1000BASE-T PoE+ adaptive Ethernet ports, 4 100/1000BASE-X SFP ports (including 4 10/1000/1000BASE-T combo Ethernet ports).

* S5130S-28S-PWR-EI: 24 10/100/1000BASE-T PoE+ auto-sensing Ethernet ports, 4 1/2.5/10GE SFP+ ports;

* S5130S-28S-HPWR-EI: 24 10/100/1000BASE-T PoE+ auto-sensing Ethernet ports (including 4 100/1000BASE-X SFP combo optical ports), 4 1/2.5/10GE SFP+ ports;

* S5130S-52P-PWR-EI: 48 10/100/1000BASE-T PoE+ auto-sensing Ethernet ports, 4 1000BASE-X SFP ports;

* S5130S-52S-PWR-EI: 48 10/100/1000BASE-T PoE+ auto-sensing Ethernet ports, 4 1/2.5/10GE SFP+ ports;

* S5130S-28P-HPWR-EI-AC: 24 10/100/1000BASE-T PoE+ adaptive Ethernet ports, 4 100/1000BASE-X SFP ports (including 4 10/1000/1000BASE-T combo Ethernet ports).

* S5130S-28S-HPWR-EI-AC: 24 10/100/1000BASE-T PoE+ adaptive Ethernet ports (including 4 100/1000BASE-X SFP combo optical ports), 4 1/2.5/10GE SFP+ ports;

* S5130S-52P-PWR-EI-AC: 48 10/100/1000BASE-T PoE+ auto-sensing Ethernet ports, 4 1000BASE-X SFP ports;

* S5130S-52S-PWR-EI-AC: 48 10/100/1000BASE-T PoE+ auto-sensing Ethernet ports, 4 1/2.5/10GE SFP+ ports;

* S5130S-52F-EI: 48 100/1000BASE-X SFP optical ports (including 2 10/1000/1000BASE-T combo electrical ports), 4 1/2.5/10GE SFP+ optical ports;

* S5130S-28TP-EI: 24 10/100/1000BASE-T auto-sensing Ethernet ports, 2 100/1000BASE-X SFP ports (including 2 10/1000/1000BASE-T combo Ethernet ports), and 2 1000BASE-X SFP ports;

* S5130S-52TP-EI: 48 10/100/1000BASE-T auto-sensing Ethernet ports, 2 100/1000BASE-X SFP ports (including 2 10/1000/1000BASE-T combo Ethernet ports), and 2 1000BASE-X SFP ports;

* S5130S-28F-EI: 24 100/1000BASE-X SFP optical ports (including 8 10/1000/1000BASE-T combo electrical ports), 4 1/2.5/10GE SFP+ optical ports;

* S5130S-28S-HPWR-EI-Q: 24 10/100/1000BASE-T PoE+ auto-sensing Ethernet ports, 4 1/2.5/10GE SFP+ ports;

* S5130S-28ST-EI: 24 10/100/1000BASE-T adaptive Ethernet ports, 2 1/2.5/10GE SFP+ ports, and 2 1/2.5/5/10G BASE-T Ethernet ports;

* S5130S-52ST-EI: 48 10/100/1000BASE-T adaptive Ethernet ports, 2 1/2.5/10GE SFP+ ports, and 2 1/2.5/5/10G BASE-T Ethernet ports;

* S5130S-28ST-PWR-EI: 24 10/100/1000BASE-T PoE+ adaptive Ethernet ports, 2 1/2.5/10GE SFP+ ports, and 2 1/2.5/5/10G BASE-T Ethernet ports;

* S5130S-52ST-PWR-EI: 48 10/100/1000BASE-T PoE+ adaptive Ethernet ports, 2 1/2.5/10GE SFP+ ports, and 2 1/2.5/5/10G BASE-T Ethernet ports;

* S5130S-16S-PWR-EI: 12 x 10/100/1000Base-T PoE+ ports, 2 x 10/100/1000Base-T ports, 2 x 1/2.5/10GE SFP+ ports

* S5130S-28PS-EI: 24 10/100/1000BASE-T Ethernet ports (including 8 100/1000BASE-X SFP Combo ports), 4 1/2.5/10GE SFP+ ports;

* S5130S-10MS-UPWR-EI: 8 x 1/2.5G BASE-T (PoE++) Ethernet ports, 2 x 1/2.5/10GE SFP+ ports;

* S5130S-28S-UPWR-EI-Q: 8 x 10/100/1000BASE-T (PoE++) ports, 16 x 10/100/1000BASE-T (PoE+) ports, 4 x 1/2.5/10GE SFP+ ports;

* S5130S-16S-UPWR-EI-Q: 12 x 10/100/1000Base-T (PoE++) Ethernet ports, 2 x 10/100/1000Base-T Ethernet ports, 2 x 1/2.5/10GE SFP+ ports

* S5130S-28S-EI-DP: 24 10/100/1000BASE-T Ethernet ports, supports 4 1/2.5/10GE SFP+ ports, and features a built-in dual power supply.

Features

1、SmartMC(Intelligent Management Center)

As network scale increases, a large number of access devices are needed at the network edge, making the management of these devices very cumbersome.SmartMCThe main purpose is to solve the problem of centralized management of a large number of dispersed network devices. It aims to solve the operation and maintenance tasks of small businesses that mainly use switches.SmartMCUnified operation and management of the network can be achieved through built-in device functionality and graphical interface.

SmartMCFour business segments simplify the operation and management of small and medium-sized industrial parks:

Intelligent Management:

This mainly includes the selection of equipment roles,FTPServer configuration, global configuration, and network port configuration, etc.

 Intelligent Operation and Maintenance:

 This mainly includes group management, device or group upgrade and backup, monitoring, and device failure replacement.

Visualization:

 This mainly includes network topology visualization and management, device list display, etc.

 Intelligent Business:

 This mainly includes user management: After creating and successfully activating network access users, these users can access the network through the port that is armed with one click.SmartMCWithin the network.

 H3C S5130S-EIThe series of switches can be used asSmartMCThe managed device, connected as a managed deviceSmartMCThe network can be easily maintained.

2、Visualization capabilities

H3C S5130S-EISeries switches supportTelemetryTechnology, throughGRPCThe protocol sends real-time resource information and alarm information of the switch to the operation and maintenance platform. The operation and maintenance platform analyzes the real-time data and can realize functions such as network quality backtracking, fault diagnosis, risk warning, and architecture optimization, so as to accurately protect the user experience.

3、Rich business performance

supportInternetBroadband access, primarily supporting gigabit access for small and medium-sized enterprise network users, supports...VODMultimedia services, supportingVoIPFor latency-sensitive voice services, provide multicast-enabled audio and video services, gigabit port access, and 10-gigabit or gigabit uplink.Jumbo Frame,support802.1X，MACAuthentication, port security, supportLACPProtocol, support4KindivualVLANSupport black holesMACFeatures include: automatic mapping of Layer 2 and Layer 3 priorities based on ports; port-based mirroring; redirection; port isolation; access control lists; and port rate limiting.IPv6Supports EthernetOAM：802.3ahand802.1ag (CFD:Connectivity Fault DetectionConnectivity error detection)RichIPv6Function

4、IRF2(Second-generation intelligent elastic architecture)

H3C S5130S-EISeries switches supportIRF2The (second-generation intelligent elastic architecture) technology connects multiple physical devices together, making them virtual as a single logical device. In other words, users can manage and use these multiple devices as a single device.S5130S-EIThis series of switches can be virtualized not only through 10 Gigabit optical interfaces, but also through Gigabit optical and Gigabit electrical ports, all via network cables.IRF2Function.IRFIt can bring the following benefits to users:

Simplify managementIRFOnce the architecture is established, it can connect to any port of any device to log in to a unified logical device. By configuring a single device, it can manage the entire intelligent elastic system and all member devices within the system, without having to physically connect to each member device to configure and manage them separately.

Simplify businessIRFThe various control protocols running in the formed logical devices are also run as a single device. For example, the routing protocol is calculated as a single device. With the application of cross-device link aggregation technology, it can replace the original spanning tree protocol. This can save a lot of protocol message interaction between devices, simplify network operation, and shorten the convergence time when the network is unstable.

Elastic scaling allows for flexible expansion based on user needs, ensuring the protection of user investment. Furthermore, new devices can be added or removed.IRFThe architecture allows for "hot-swapping" without affecting the normal operation of other devices.

High reliabilityIRFThe high reliability is reflected in three aspects: the link, the equipment, and the protocol. The physical ports of member devices support aggregation.IRFThe physical connections between the system and upper and lower layer devices also support aggregation, which improves the reliability of the links through multi-link backup;IRFThe system consists of multiple member devices, onceMasterIn case of equipment failure, the system will quickly and automatically elect a new one.MasterThis ensures uninterrupted service through the system, thereby achieving device-level [unclear - possibly related to security/safety].1：NBackup;IRFThe system has a real-time protocol hot backup function responsible for backing up the protocol configuration information to all other member devices, thereby achieving...1：NThe reliability of the protocol.

For high-end switches, performance and port density improvements are limited by hardware architecture.IRFThe system's performance and port density areIRFThe sum of the performance and number of ports of all internal devices. Therefore,IRFTechnology can easily increase the switching capacity and user port density of a device several times over, thereby significantly improving the device's performance.

5、IRF3.1(Vertical virtualization)

H3C S5130S-EISeries of switch products supportIRF3.1（Intelligent Resilient Framework 3.1Vertical virtualization technology, through802.1BRThe technology integrates access devices as remote interface boards into the main device system, virtualizing the core layer devices and access layer devices into a single logical device in a vertical dimension, thereby achieving scalability.I/OThe purpose is to provide port capabilities and to enable centralized control and management.IRF3.1Technology can simplify management, significantly reduce network management nodes, simplify cabling, compress network layers, and ultimately achieve data forwarding plane virtualization.IRF3.1Vertical virtualization technology can bring the following benefits to users:

Unified management:IRF3.1Once the architecture is established, connecting to the master device allows for centralized configuration and management of all members within the architecture, without the need for separate configuration on each member device via physical connection.

Unified security policy: The security policy for the entire network only needs to be configured on the main device, avoiding potential policy conflicts caused by configuring each device on the entire network one by one, and greatly reducing the workload of security deployment.

Simplified network hierarchy: Supports large-scale remote interface board expansion capabilities, eliminating the need for traditional three-layer network architectures in network topologies.IRF3.1It can be simplified to a two-layer network, which simplifies the physical and logical layers of the network and makes cabling easier.

Simplify business processes:IRF3.1The various service configurations in the architecture are configured based on a single logical device, which greatly simplifies the entire network.VLAN、IP,routing,MplsPlanning considerations, etc.

Easy maintenance: The configuration and software version of all access devices are automatically assigned by the master device. When adding or leaving a new device, it can be "hot-swapped" and zero-configuration can be achieved without affecting the normal operation of other devices. Troubleshooting of the entire network is also a single point.

6、Comprehensive security control strategy

H3C S5130S-EIThe series of switches supports innovative single-port multiple authentication.TripleIn a network environment with diverse client types, different clients support different access authentication methods. For example, some clients can only perform...MACAddress authentication (such as for printer terminals) is sometimes performed by the user host.802.1XAuthentication is required for some user hosts to only require authentication.WebAccess in progressPortalAuthentication. To flexibly adapt to the multiple authentication requirements of this network environment,S5130S-EIThe series of switches supports a unified deployment approach with multiple authentication methods on a single port, allowing users to choose any suitable authentication mechanism and achieve access by using only one authentication method. The client provides...Guest VlanThis feature ensures that authorized clients can only access specific resources and will employ corresponding strategies, such as obtaining...802.1xClient updates, client upgrades, or obtaining other upgrade programs, etc. Supported.Secure Shell V2（SSH V2These features provide secure information assurance and robust authentication capabilities to protect Ethernet switches from threats such as…IPAttacks such as address fraud and plaintext password interception.

ARPattack andARPViruses are the number one threat to local area network security.H3C S5130S-EIThe series of switches supports a wide range of features.ARPDefensive functions, such asARP DetectionImplement user legitimacy check function andARPMessage validity check functionARPSpeed ​​limit to avoid large-scaleARPmessage pairCPUTo carry out impacts, etc.

H3C S5130S-EISeries switches supportEADThe (terminal access control) function, in conjunction with the backend system, can integrate terminal security measures such as terminal antivirus and patch repair with network security measures such as network access control and access permission control into a coordinated security system. By inspecting, isolating, repairing, managing and monitoring network access terminals, the entire network can be transformed from passive defense to active defense, from single-point defense to comprehensive defense, and from decentralized management to centralized policy management, thereby improving the network's overall defense capabilities against emerging security threats such as viruses and worms.

7AbundantQoSStrategy

H3C S5130S-EISeries switches supportL2（Layer 2）~L4（Layer 4Packet filtering function, providing source-based filtering.MACAddress, destinationMACAddress, SourceIPAddress, destinationIPaddress,TCP/UDPPort number, protocol type,VLANStream classification. Provides flexible queue scheduling algorithms, which can be configured based on both port and queue, supporting...SP、WRR、SP+WRRThree modes. Also supports entry.../Two-way exitACLSupport traffic monitoringCARFunctions and support/Inbound port/Stream mirroring is used to monitor packets on a specified port, copying data packets from that port to the monitoring port for network testing and troubleshooting. Simultaneously...H3C S5130S-EIThe series of switches also supportssFlowFunctionality: Samples data packets on the network, in gigabit speeds./Precise monitoring of network traffic on a 10 Gigabit high-speed network is used for statistical analysis and control of network traffic.

8、SDN(Software-defined networking)

Software-defined networking (Software Defined Network，SDNThis is an innovative network architecture. Its core technology...OpenflowBy separating the network control layer and data forwarding layer, the management and maintenance of the network are greatly simplified. More importantly, flexible control of network traffic is achieved, providing a good network platform for innovation in core networks and applications.

S5130S-EIThe series of switches can supportOPENFLOW 1.3The standard supports normal mode andOpenflowMode switching, supports large-scale flow tables, and works withH3C SDN controllerIt can easily achieve large-scale Layer 2 architecture networking and provides the function of quickly adding users to existing networks; while greatly simplifying the difficulty of network management, it can significantly reduce the cost of network maintenance.

9、Excellent management

H3C S5130S-EISeries switches supportSNMPv1/v2/v3（Simple Network Management Protocol), can supportOpen ViewGeneral network management platforms andImcIntelligent Management Center. Supported.CLIcommand line,Webnetwork management,TELNETThis makes equipment management more convenient and supports...SSH2.0Encryption methods make management more secure.

H3C S5130S-EIThe series of switches supports based onMACAddress DivisionVLANIt effectively solves the problem of intelligent and flexible management of mobile office work; combined with its unique global andVLAN

IssuedACLThis strategy simplifies user configuration while also significantly saving hardware resources.

H3C S5130S-EIThe switch supportsBIMSThe protocol can automatically download configuration files and applications from the server, enabling zero-configuration startup and significantly reducing the initial configuration workload for large and complex networks.

10、High reliability

H3C S5130S-EIThe series of switches features multiple reliability protections at both the device and link levels. The hardware supports overcurrent protection, overvoltage protection, and overheat protection technologies; it also supports power supply and fan fault detection and alarms, and can automatically adjust fan speed according to temperature changes. These designs give the equipment a high degree of reliability.

In addition to device-level reliability, this product also supports a wide range of link-level reliability technologies, includingLACP/STP/RSTP/MSTP/Smart LinkProtection protocols. Supported.IRF2Intelligent elastic architecture, supports1：NRedundant backup, supports ring stacking, and supports cross-device link aggregation, greatly improving network reliability. When the network carries multiple services and high traffic, it does not affect the network convergence time, ensuring the normal operation of services.

H3C S5130S-EIThe series of switches supports fast link connectivity detection and port loop detection to prevent unauthorized connections from causing network issues.HubThis refers to the phenomenon where loops formed by devices can lead to network failures.

11、Professional lightning protection

H3C S5130S-EIThe series of switches adopts professional lightning protection (surge protection) technology and supports industry-leading...10KVIts lightning protection capability greatly reduces the damage rate of equipment caused by lightning strikes, even in harsh working environments.

12、PoEability

H3C S5130S-EIThe series of switches can supportPoEPower supply, capable of providingAPPower receiving equipment such as camerasPD) to provide remote power supply, in additionH3C S5130S-EIThe series will alsoAIAbility integrationPoEIn the technology, it makesPoEThe switch can support:

Fast PoE：PoEOnce powered on, the switch can supply power to the receiving device within seconds, without waiting for the switch to complete startup.

Perpetual PoEWhen a switch performs a warm restart using commands, it ensures that the power supply to the powered devices is not interrupted, maintaining the normal operation of the powered devices.

13、Green and energy-saving

H3C S5130S-EIThe series of switches adopts the latest energy-saving chips and innovative architecture design to achieve the lowest power consumption of gigabit switches, bringing users a new green, environmentally friendly and energy-saving network access product and reducing user maintenance costs.

at the same timeH3C S5130S-EIThe series of switches adopts a variety of green and energy-saving designs, includingauto-power-down(Port automatic power saving) If the interface status remains unchanged for a period of time...downThe system will automatically stop supplying power to the interface and automatically enter energy-saving mode; supportsEEEEnergy-saving function: If a port is idle for a continuous period of time, the system will set the port to energy-saving mode. When there is a need to send or receive messages, the system will wake up the port by periodically sending a listening stream to resume service, thus achieving energy saving and meeting EU requirements for material environmental protection and safety.RoHSstandard.

H3C S5130S-EISeries SwitchesS5130S-28P-EI、S5130S-28TP-EI、S5130S-10P-EI、S5130S-12TP-EI、S5130S-20P-EI、S5130S-10P-HPWR-EI、S5130S-12TP-HPWR-EI、S5130S-28P-EI-M、S5130S-28S-HPWR-EI-Q、S5130S-28S-UPWR-EI-Q、S5130S-16S-UPWR-EI-QThe model features a fanless, silent design, which significantly reduces the power consumption and potential for failure of the device, while also reducing radiation to meet the radiation standards for household appliances, posing no harm to the human body.

MutePOE++

H3C S5130S-28S-HPWR-EI-Q、S5130S-28S-UPWR-EI-Q、S5130S-16S-UPWR-EI-QThe model incorporates several original designs to achieve high power.POEThe power supply produces no noise. In environments with extremely high noise requirements, such as buildings, hotels, video conferencing facilities, and smart classrooms, it provides...PDterminal(AP,Camera,VDI，IOT(etc.) provides a single port with a maximum capacity of99WofPoE++Power supply simplifies cabling and reduces labor costs for users. Its unique silent design also provides users with an exceptionally quiet network environment.

Typical applications of large-scale campus networks

In large and medium-sized enterprise campus networks, the S5130S-EI series Ethernet switches can serve as access switches, providing high-performance, high-capacity switching services and supporting 10GE uplink interfaces, offering higher bandwidth for access devices. Furthermore, the core, aggregation, and high-performance access layers all utilize H3C's innovative IRF2 (Intelligent Resilient Architecture) technology. Without altering the original network topology, multiple devices are virtualized into a unified logical device, simplifying network topology, services, and management. This results in a 1:N reliability improvement, significantly enhanced network performance, and many other advantages. The S5130S-EI series Ethernet switches support Telemetry technology, collecting device data in real time and uploading it to the network analysis system. This system uses intelligent fault identification algorithms to analyze network data, accurately displaying the real-time network status and effectively delimiting and locating faults, ensuring a precise network experience.

S5130S-EI series Ethernet switches are used in the aggregation layer of enterprise/campus networks.

Product Specifications

Business characteristics
